Description

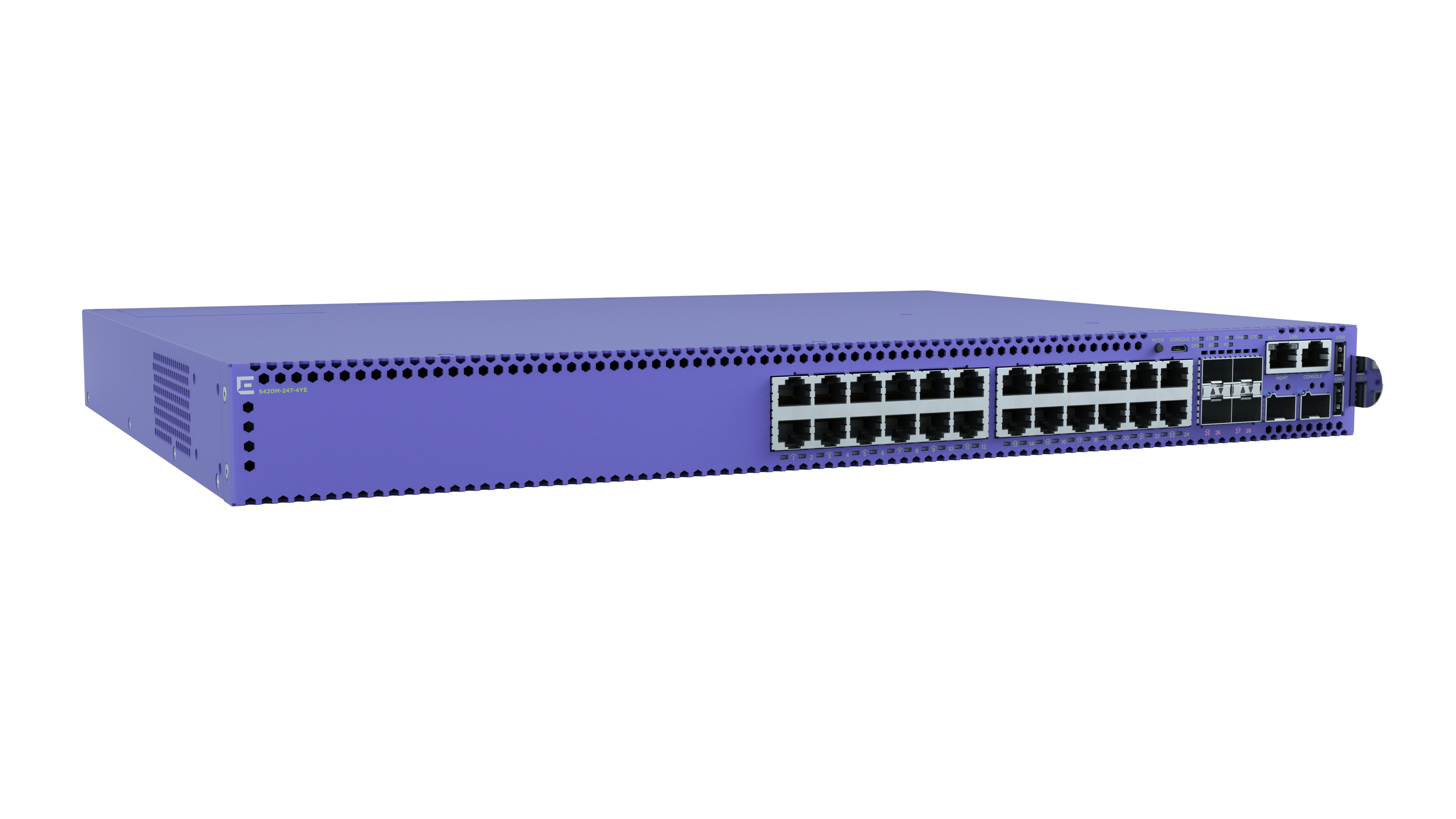

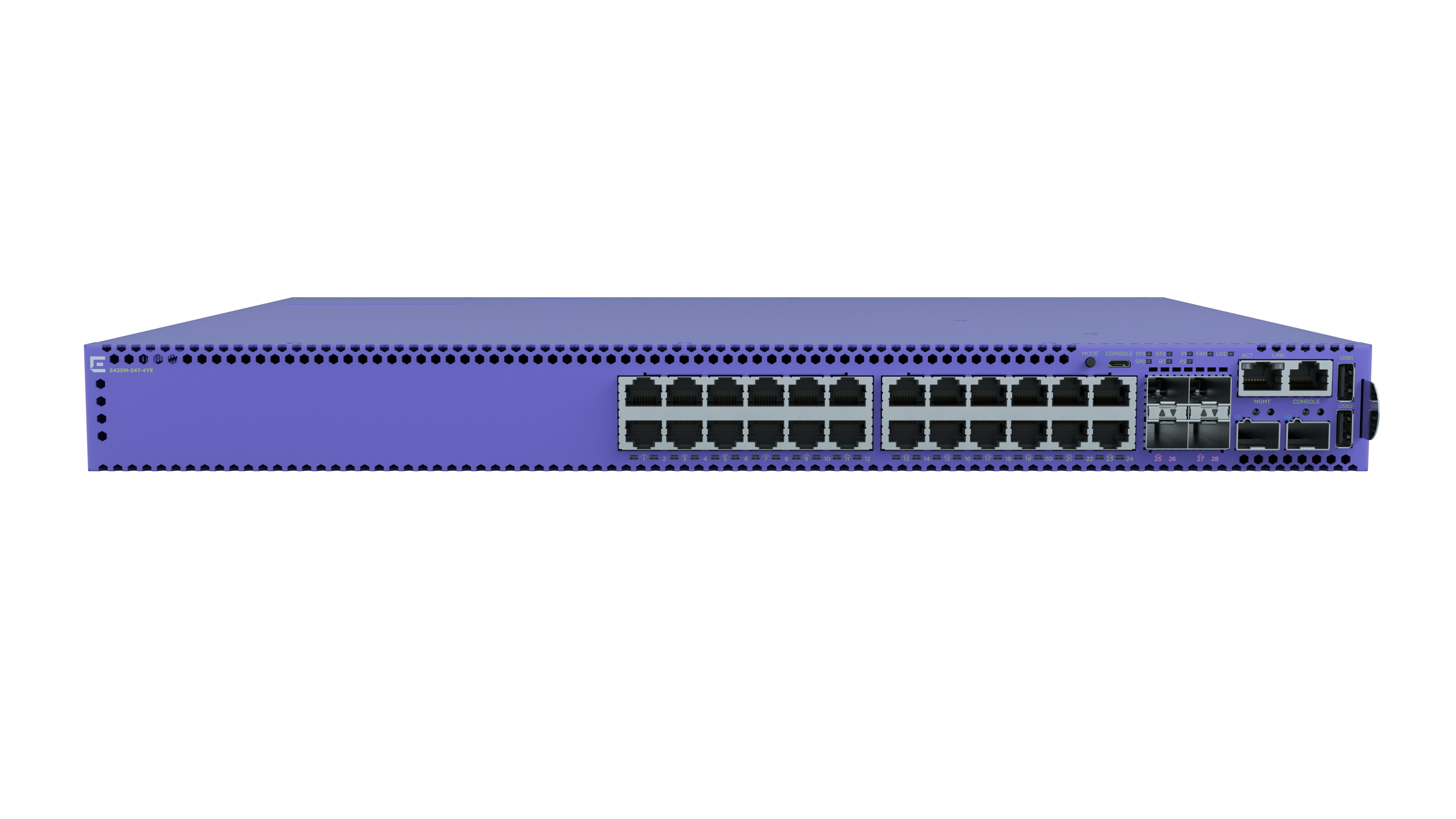

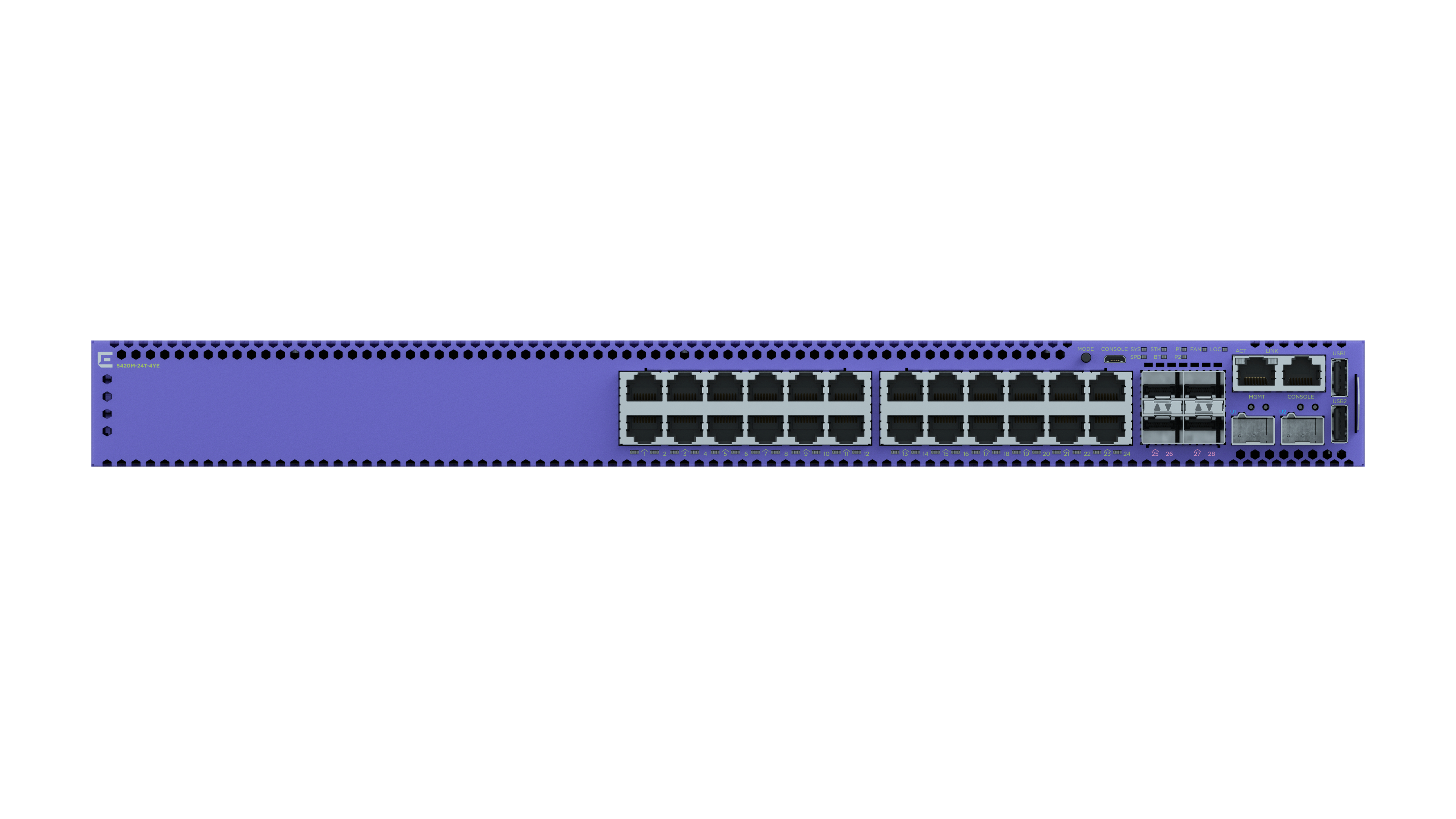

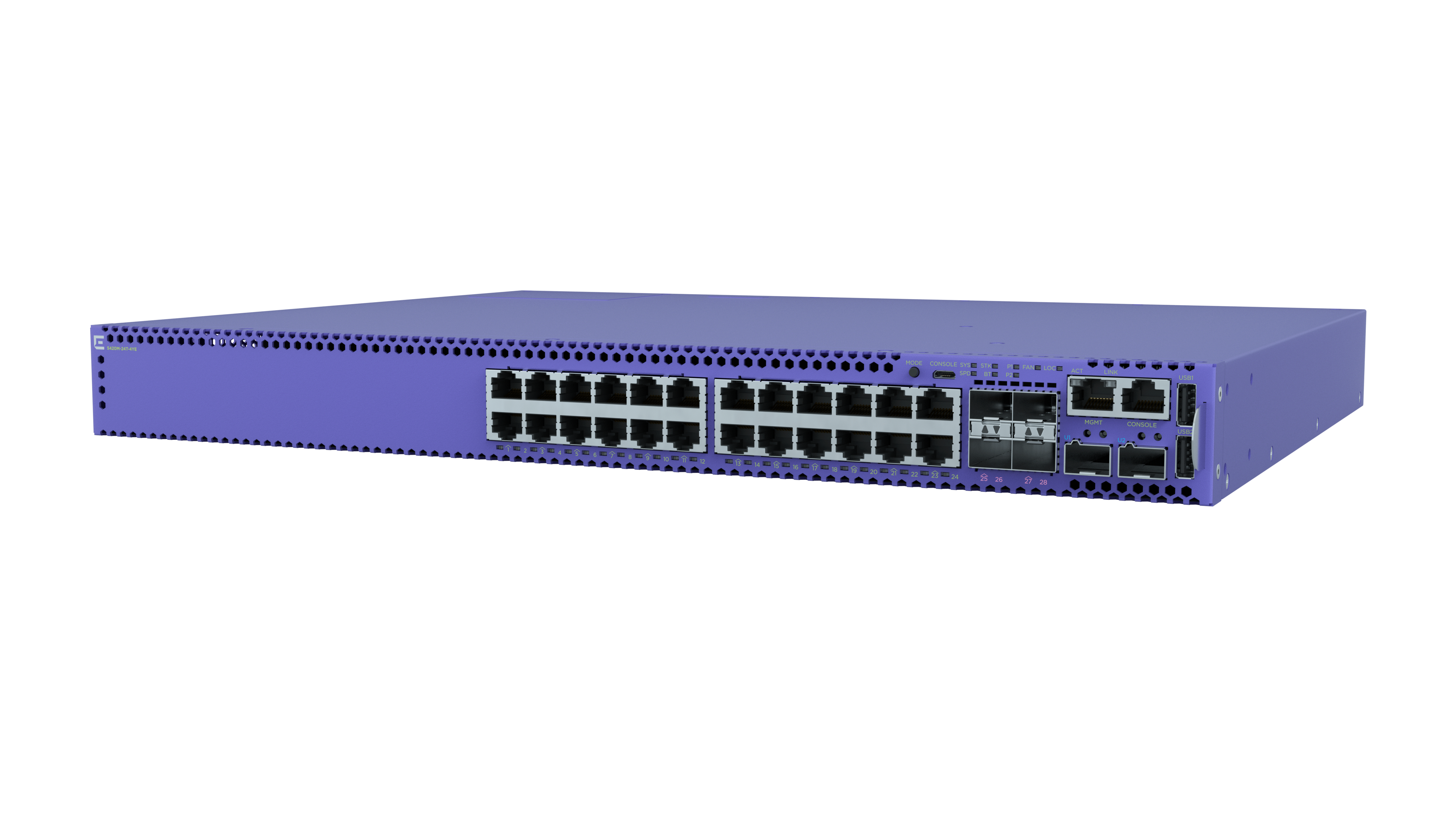

The Extreme Networks 5420M-24T-4YE is a modular Gigabit access switch designed for campus, municipal, and enterprise networks. It provides 24 × 10/100/1000Base-T ports, 4 × 1/10/25Gb SFP28 uplink ports, and two SFP-DD high-speed stacking ports, allowing up to eight systems to stack using qualified DAC/optical modules.
This model is part of the Extreme 5420M family and supports flexible power supplies, enhanced software features, and MACsec-capable interfaces.
Key Features
-
24 × 10/100/1000Base-T access ports (autosensing, full/half duplex)
-
4 × SFP28 uplink ports (1/10/25Gb, unpopulated)
-
2 × SFP-DD stacking ports for high-speed stacking up to 8 units
-
MACsec-capable downlink & uplink ports
-

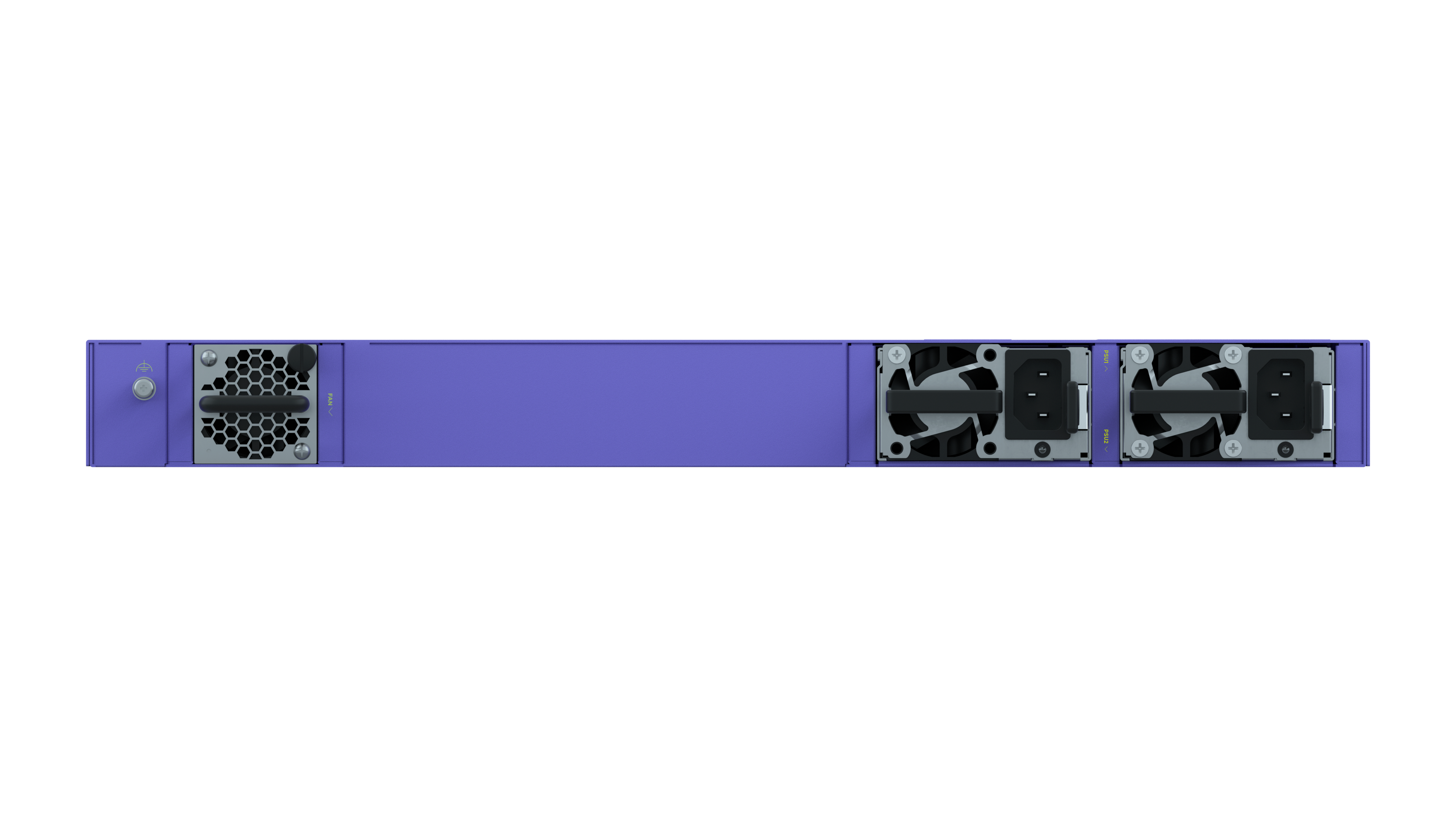

Modular PSU and fans depending on chosen configuration
-
Enhanced software image (“E”) with advanced feature entitlement
-
Out-of-band management port + dual USB for local management
-
Designed for campus, education, and public-sector networks
Interfaces
-
24 × 10/100/1000Base-T access ports (MACsec-capable)
-
4 × 1/10/25Gb SFP28 uplinks (MACsec-capable, unpopulated)
-
2 × SFP-DD stacking ports
-
1 × RJ-45 serial console
-
1 × 10/100/1000BASE-T OOB management port
-
2 × USB A ports (management / USB flash)
-
1 × USB Micro-B console port
Performance & Platform
-
Form factor: 1U
-
Operational power draw: 28W
-
Max power draw: 57W
-
Includes: 150W power supply
-
High-speed stacking supported with SFP+/SFP-DD DACs or optics
Dimensions
-
Width: 17.4 in
-
Depth: 13 in
-
Height: 1.7 in
-
Weight: 4.18 kg
What’s Included
-
Extreme Networks 5420M-24T-4YE switch
-
150W power supply (per distributor listing)
-
Console cables (if included by disti)
-
Documentation
Ideal For
-
K–12 school networks
-
Campus access layers
-
Municipal buildings
-
Commercial Gigabit-to-desktop environments
-
25G uplink migration paths
Support
Includes:
-
1-year ExtremeCloud IQ Pilot subscription
