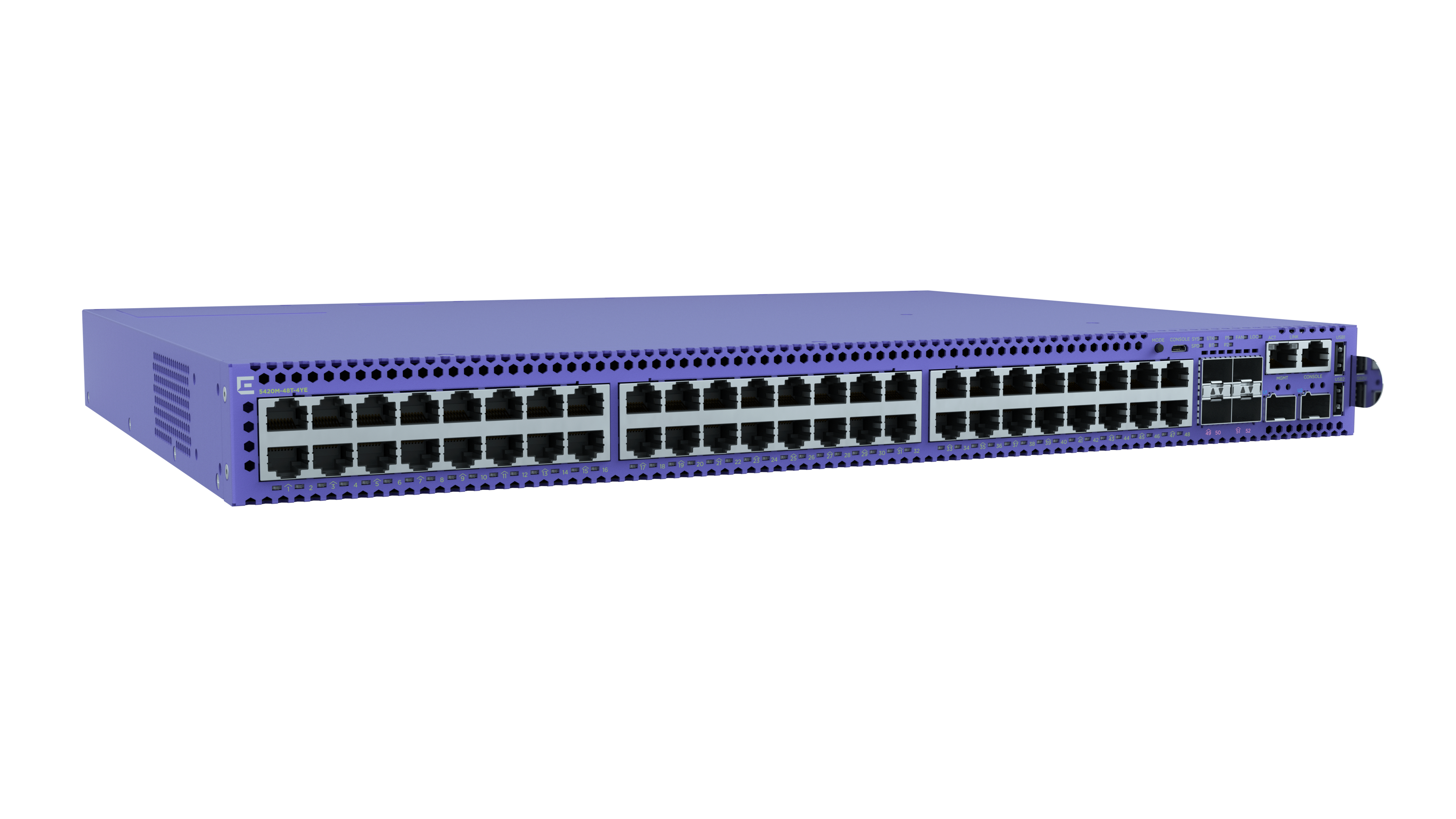

Extreme Networks 5420M-48T-4YE – 48-Port Gigabit Access Switch with 4× 25Gb SFP28 Uplinks

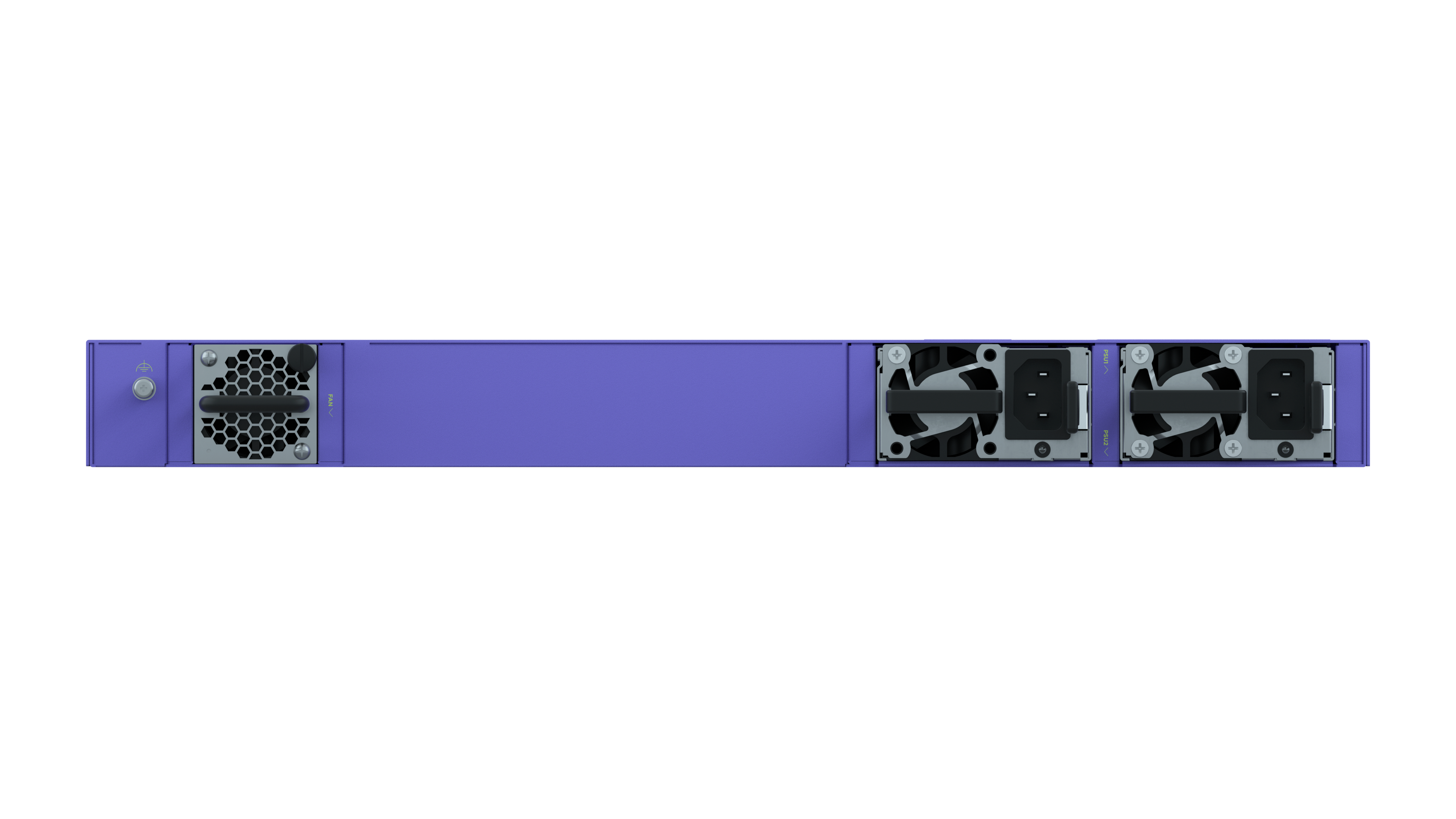

Extreme Networks 5420M-48T-4YE – 48-Port Gigabit Access Switch with 4× 25Gb SFP28 Uplinks - Image 2

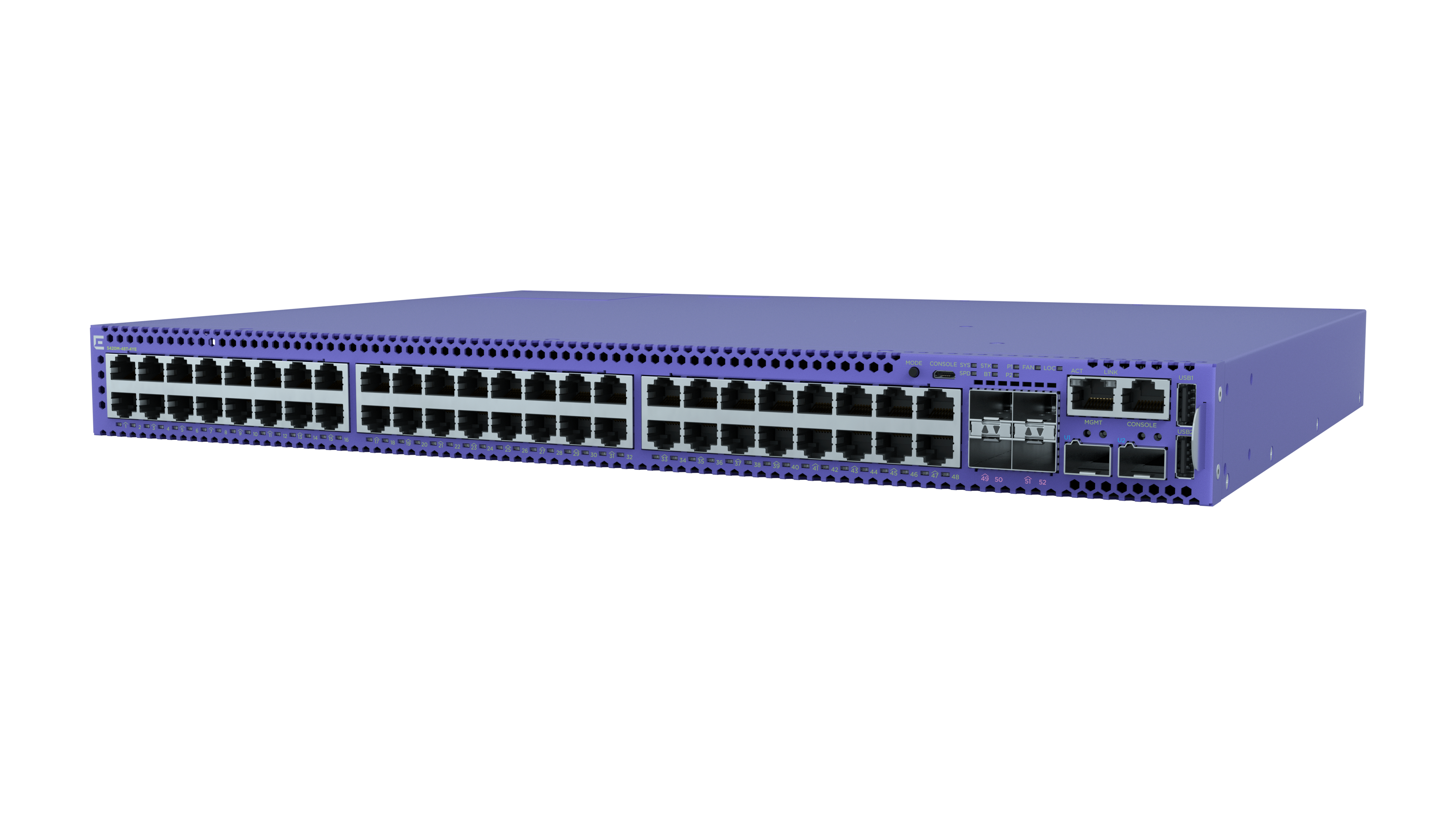

Extreme Networks 5420M-48T-4YE – 48-Port Gigabit Access Switch with 4× 25Gb SFP28 Uplinks - Image 3

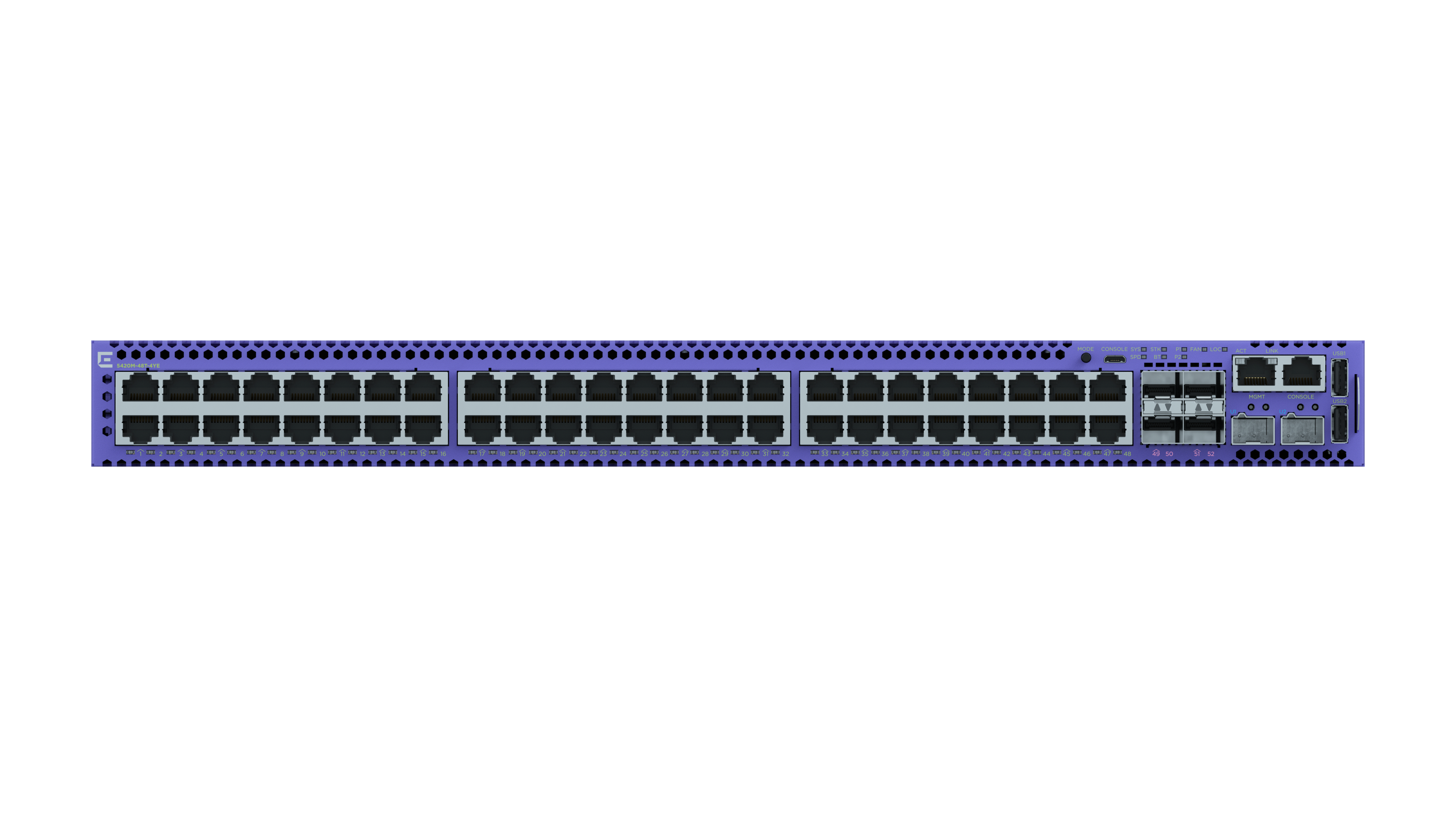

Extreme Networks 5420M-48T-4YE – 48-Port Gigabit Access Switch with 4× 25Gb SFP28 Uplinks - Image 4

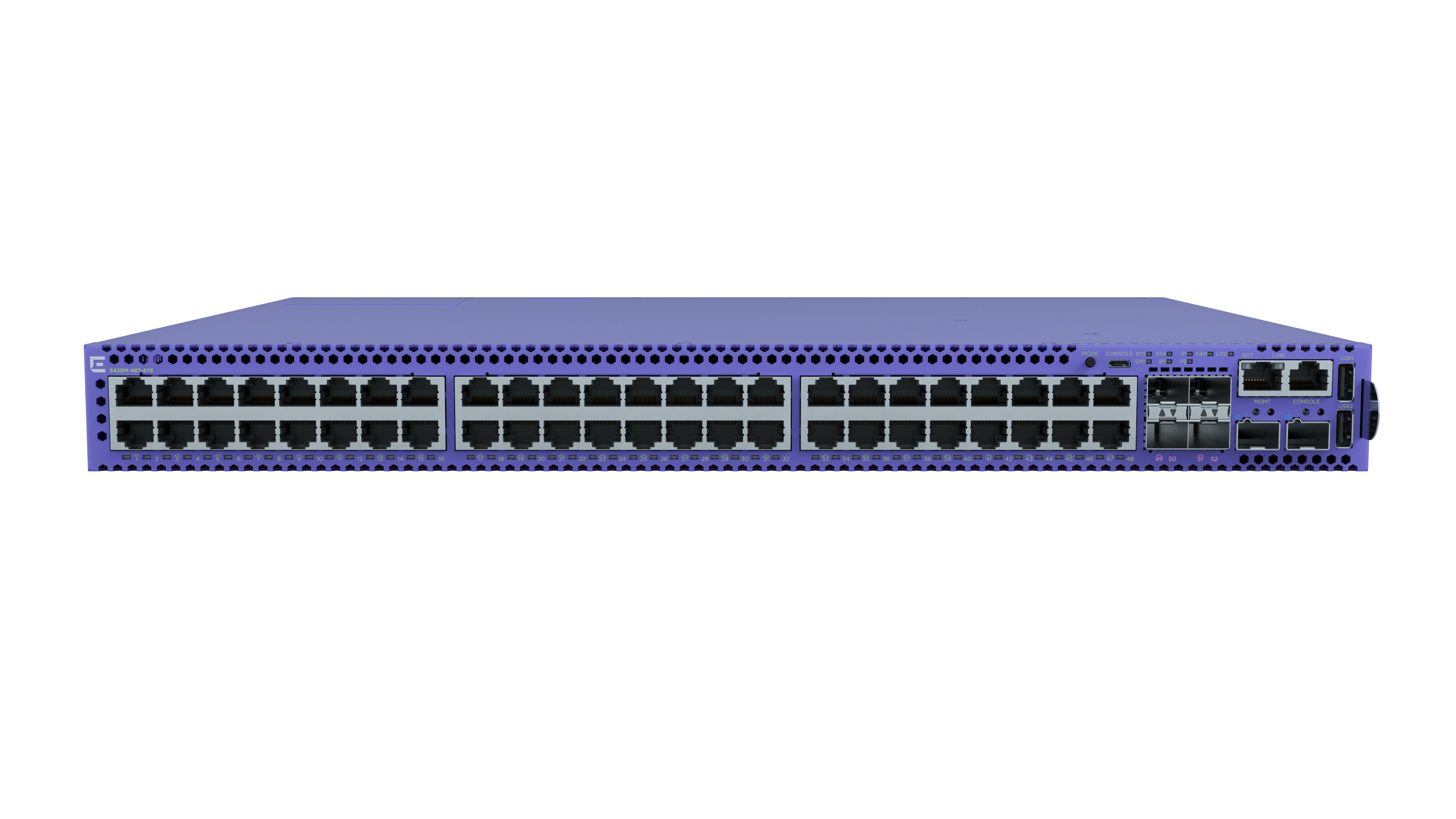

Extreme Networks 5420M-48T-4YE – 48-Port Gigabit Access Switch with 4× 25Gb SFP28 Uplinks - Image 5

Extreme Networks 5420M-48T-4YE – 48-Port Gigabit Access Switch with 4× 25Gb SFP28 Uplinks

Request Authorized Quote

Login is required to submit RFQ/PO requests.

SKU: 5420M-48T-4YE Category: Tags: , , , , , , Brand:

Description

The Extreme Networks 5420M-48T-4YE is a high-density Gigabit access switch designed for environments that do not require PoE, such as server rooms, desktop networks, labs, and municipal or commercial wiring closets. It offers 48 × 1GbE copper ports, 4 × SFP28 uplinks at up to 25GbE, and dual SFP-DD ports for high-speed stacking of up to eight switches.

Universal hardware allows operation with either ExtremeXOS or Extreme Fabric Engine, giving organizations flexibility in deployment models, automation, and fabric architectures.

Key Features

  • 48 × non-PoE 10/100/1000BASE-T access ports (MACsec-capable)

  • 4 × SFP28 uplink ports supporting 1/10/25GbE

  • 2 × SFP-DD stacking ports for high-speed stacking (up to 8 units)

  • MACsec encryption on copper and fiber interfaces

  • Low power consumption (34W typical / 68W max)

  • Dual-persona OS support (EXOS or Fabric Engine)

  • Centralized management via ExtremeCloud IQ or Site Engine

Interfaces

  • 48 × 10/100/1000Base-T ports (non-PoE, full/half duplex)

  • 4 × SFP28 uplinks (1/10/25GbE)

  • 2 × SFP-DD stacking ports

  • 1 × RJ45 serial console

  • 1 × 10/100/1000BASE-T out-of-band management port

  • 2 × USB-A ports

  • 1 × USB Micro-B console port

Networking Capabilities

  • Layer 2 & Layer 3 switching

  • IPv4 / IPv6 routing

  • VLAN management

  • MACsec link-layer encryption

  • Intelligent fabric-enabled operations (Fabric Connect)

  • ExtremeCloud IQ integration

Power & Efficiency

  • Power supplied: 150W PSU

  • 34W operational power consumption

  • 68W maximum power draw

  • Efficient for non-PoE deployments, reducing electrical load

Dimensions & Weight

  • Width: 17.4 in

  • Depth: 13 in

  • Height: 1.7 in

  • Weight: 4.39 kg

Environmental

  • Operating temperature: as per 5420 series standard

  • TAA/COO: Inquire

Ideal Use Cases

  • Non-PoE access layer deployments

  • Server rooms & network distribution closets

  • Office workstation networks

  • Public-sector facilities without powered edge devices

  • Environments requiring secure Gigabit access with 25Gb uplinks

What’s Included

  • Extreme Networks 5420M-48T-4YE switch

  • 150W power supply

  • Documentation

Additional information

Weight 4.39 kg
